Product Introduction

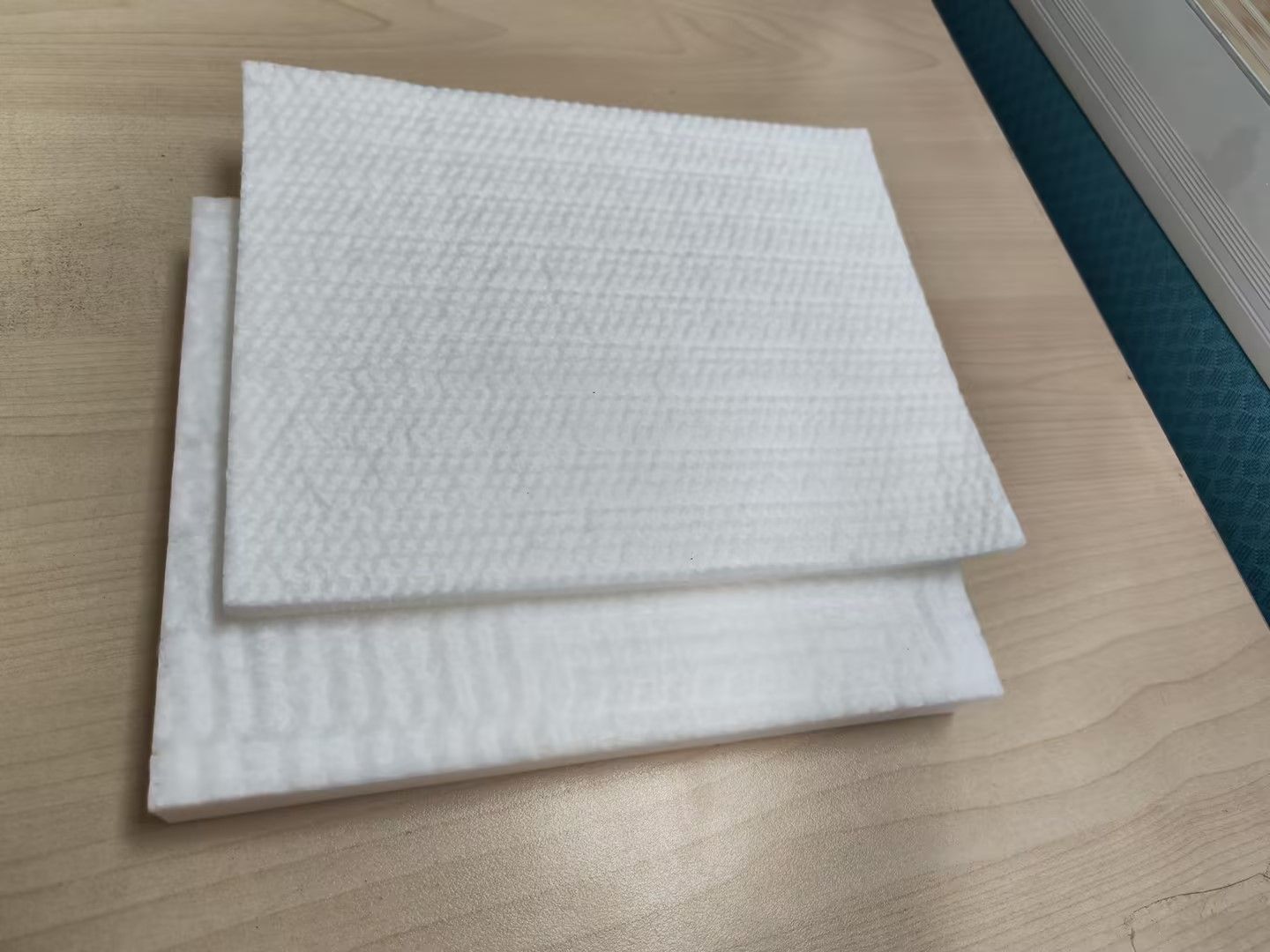

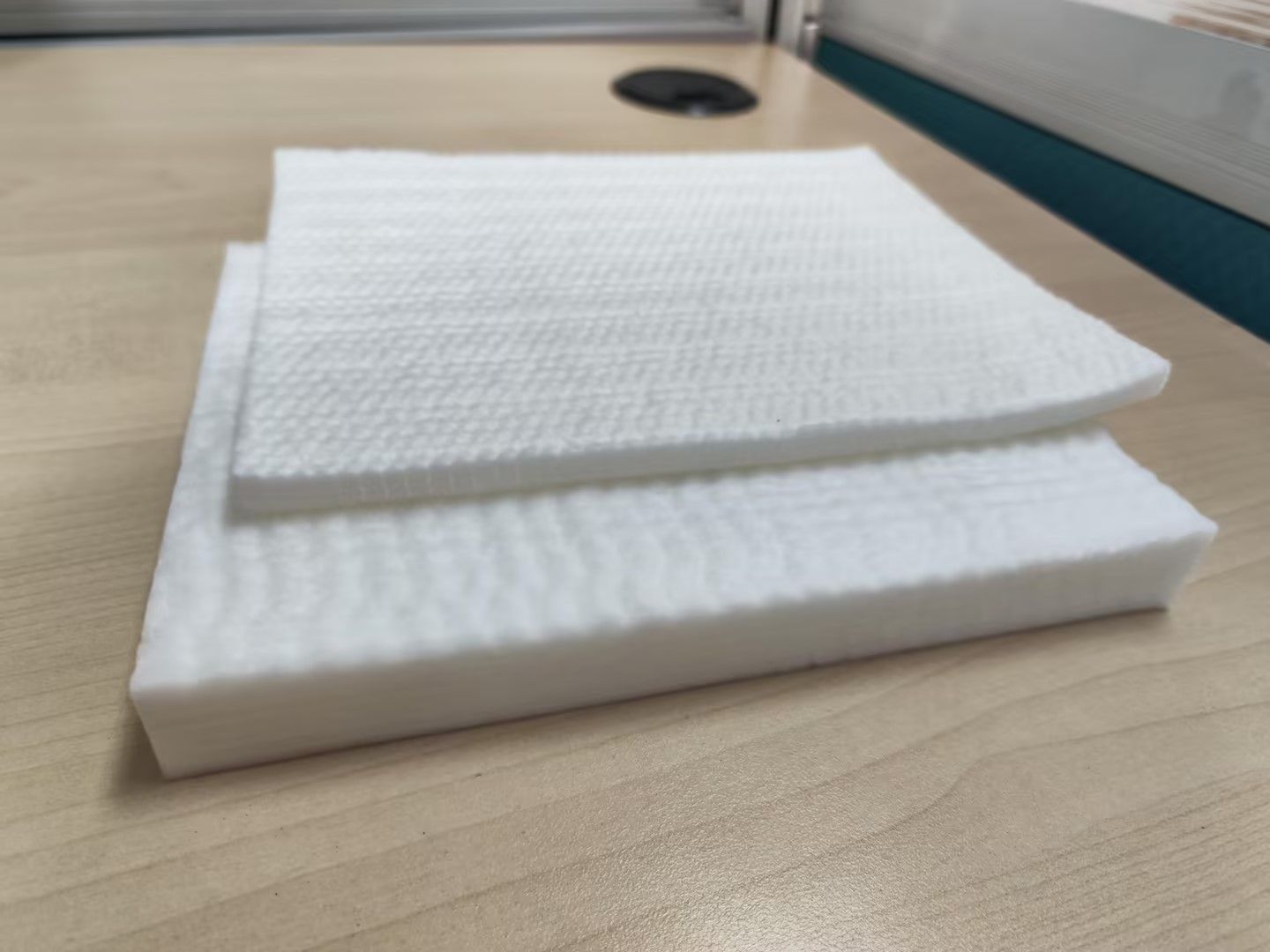

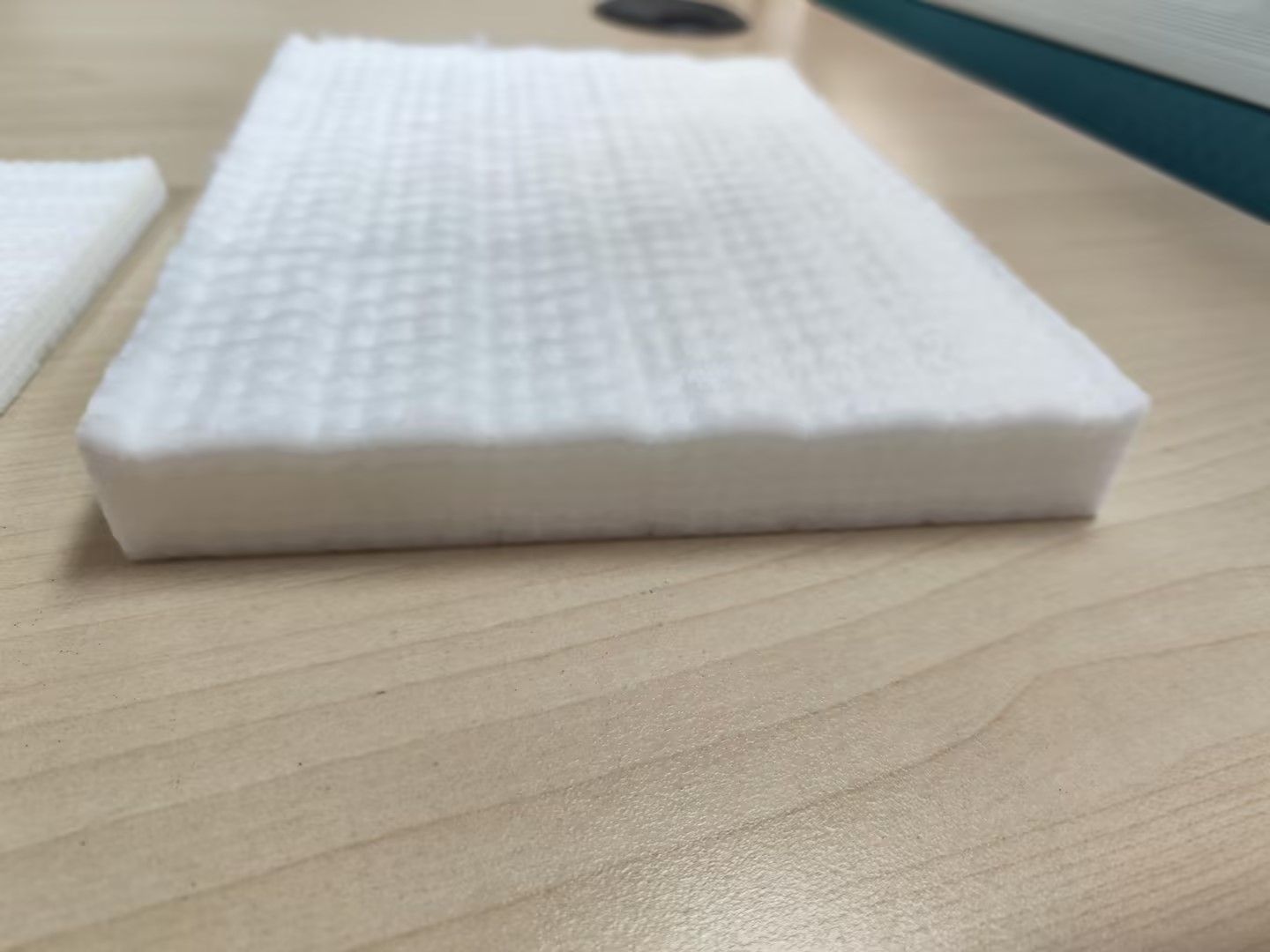

ceramic fiber blanket is a ceramic fiber product manufactured by selecting high-purity raw materials, which are melted into fiber via electrical melting, settled and laid into a web, and then needled. It features high temperature resistance, high tensile strength, consistent dimensions, and is free of organic content. Ceramic fiber blanket can be supplied in various temperature grades, bulk densities, and dimensions according to specific requirements.
Product Types
Standard Ceramic Fiber Blanket
Common Ceramic Fiber Blanket
Standard-High Temp Ceramic Fiber Blanket
High-Purity NA Ceramic Fiber Blanket
High-Purity Ceramic Fiber Blanket
Zirconia-Alumina Ceramic Fiber Blanket
Zirconia-Containing Ceramic Fiber Blanket
Zirconia Oxide Ceramic Fiber Blanket
Product Features
High service temperature
Low thermal conductivity, excellent thermal insulation performance
Excellent thermal shock stability
Excellent tensile strength
Easy construction and installation
Product Applications
Thermal insulation and sealing for high-temperature kiln/furnace linings and roofs
Thermal insulation for long-distance pipeline networks, gas turbines, waste heat recovery systems, and outer layers of nuclear reactors
Thermal insulation and fireproof sealing for household appliances industry
Thermal insulation for high-temperature pipelines
Thermal insulation inside transportation equipment
Filler material for expansion joints
Raw material for processing ceramic fiber modules
Thermal insulation and sealing for expansion joints, doors, and lids of kilns/furnaces
| Item | Common | Standard-High Temp | Standard | High-Purity NA | High-Purity | Zirconia-Alumina | Zirconia-Containing | Zirconia Oxide |
| Classification Temp. (°C) | 1050 | 1140 | 1200 | 1260 | 1260 | 1350 | 1400 | 1500 |
| Bulk Density (kg/m³) | 96 / 128 | |||||||
| Tensile Strength (kPa) (128kg/m³) | ≥40 | ≥40 | ≥50 | ≥60 | ≥80 | ≥80 | / | |
| Thermal Conductivity (W/(m·K)) (128kg/m³) (Mean Temp. 500°C) |
≤0.148 | ≤0.148 | ≤0.148 | ≤0.148 | ≤0.145 | ≤0.145 | ≤0.145 | ≤0.145 |
| Permanent Linear Change (%) (24h) |
≥-3 (900°C) | ≥-3 (950°C) | ≥-3 (1000°C) | ≥-3 (1050°C) | ≥-3 (1100°C) | ≥-3 (1250°C) | ≥-2.6 (1350°C) | ≥-1.2 (1450°C) |
| Conventional Size (mm) | 7200×610×20/30 3600×610×50 |
|||||||
